Tomei EXPREME Ti Type-R Titanium Single Exit Y-Pipe Back Exhaust System Nissan Z 23+ RZ34 VR30DDTT

Tomei EXPREME Ti Type-R Titanium Single Exit Y-Pipe Back Exhaust System Nissan Z 23+ RZ34 VR30DDTT

$2,000.00 CAD
$2,000.00 CAD
Sale Sold out

Tomei EXPREME Ti Type-R Full Titanium Single Exit Y-Pipe Back Exhaust System for Nissan Z 23+ RZ34 VR30DDTT

TAIL PIPE

Made from Titanium material to Φ115mm diameter and 1mm thick piping. Straight cut designed and finished for race use. Finished off with the EXPREME Ti logo laser etched on the tip with the Titanium gradation blue colours.


CLAMP BAND
This clamp design is much stronger than the conventional flange and bolt type. It secures the pipe in place and can keep an airtight fixture whilst still being able to cope with the high heat, the stress loads and the vibrations that it will endure.




SILENCER SILENCER CASE

This part is made from Titanium with the pipe size of φ152 and 1mm thickness. The oversized shell design optimizes exhaust gas flow which helps with power gains. Then with the embossed Tomei logo and beautiful heat gradation colouring gives it the finishing touch that you'd expect.



SILENCER PUNCHED MESH

Made entirely from Titanium of 1mm thickness and with the open slot ratio of 32.6%. With the combination of light weight Titanium material, the high flow design delivers a really nice racing exhaust sound.



SILENCER GLASS WOOL

The long fiber wool threads were adopted for the silencer. This type has proven to last longer than the traditional fiberglass materials even over a longer period of time with extensive high temperature exposure both at high and low pressures.



PRECISION WELDS

Titanium is known to be difficult to weld but with our experienced methods we are able to achieve the best results with strength, durability and quality in finish. With the use of the right equipement, attention to details to yeild the best results you would expect.



CONNECTING SPRINGS

The pipes are connected together with the use of the hook and spring design. This allows the pipe with some movement to help absorb vibrations. The hook springs alone is sufficient enough to hold the pipes together. However you will get the best secured pipe joints when using the clamp band and the springs together.



MAIN PIPE

Made entirely of Φ89.1mm and 1mm thickness titanium piping. These pipes are designed with minimal bends and weight for optimum flow characteristics. True race purpose design.



FLANGE

Made from 8mm titanium plate for weight reduction and the 8mm prevents cracking and distortions. The size is the same as stock for ease of fitment to your car.



Full Titanium Exhaust Specifications


  TOMEI Type-R OEM
MATERIAL Titanium -
MAIN PIPE DIAMETER 3.5inch
(89.1mm)		 1.8inch
(45.0mm)
MAIN PIPE THICKNESS 1.0mm -
SUB SILENCER DIAMETER 4.7inch
(118.0mm)		 4.72inch
(120mm)
SUB SILENCER THICKNESS 1.0mm -
SILENCER DIAMETER 6.0inch
(152.0mm)		 L/R:9.25x4.72inch
(235x120mm)
C:5.91x4.92inch
(150x125mm)
SILENCER THICKNESS 1.0mm -
EXIT DIAMETER 4.5nch
(115.0mm)		 Outer:3.54inch
(90mm)
Inner:3.4inch
(86.3mm)
EXIT THICKNESS 1.0mm -
FLANGE THICKNESS 8.0mm 3.2mm
WEIGHT 14.4lbs
(6.5kg)		 44.1lbs
(20.0kg)



COMPLETE KIT

Exhaust Noise Test

Without Sound Reducer: 98db
With Sound Reducer: 94db
With Sound Reducer Ver.2: 92db

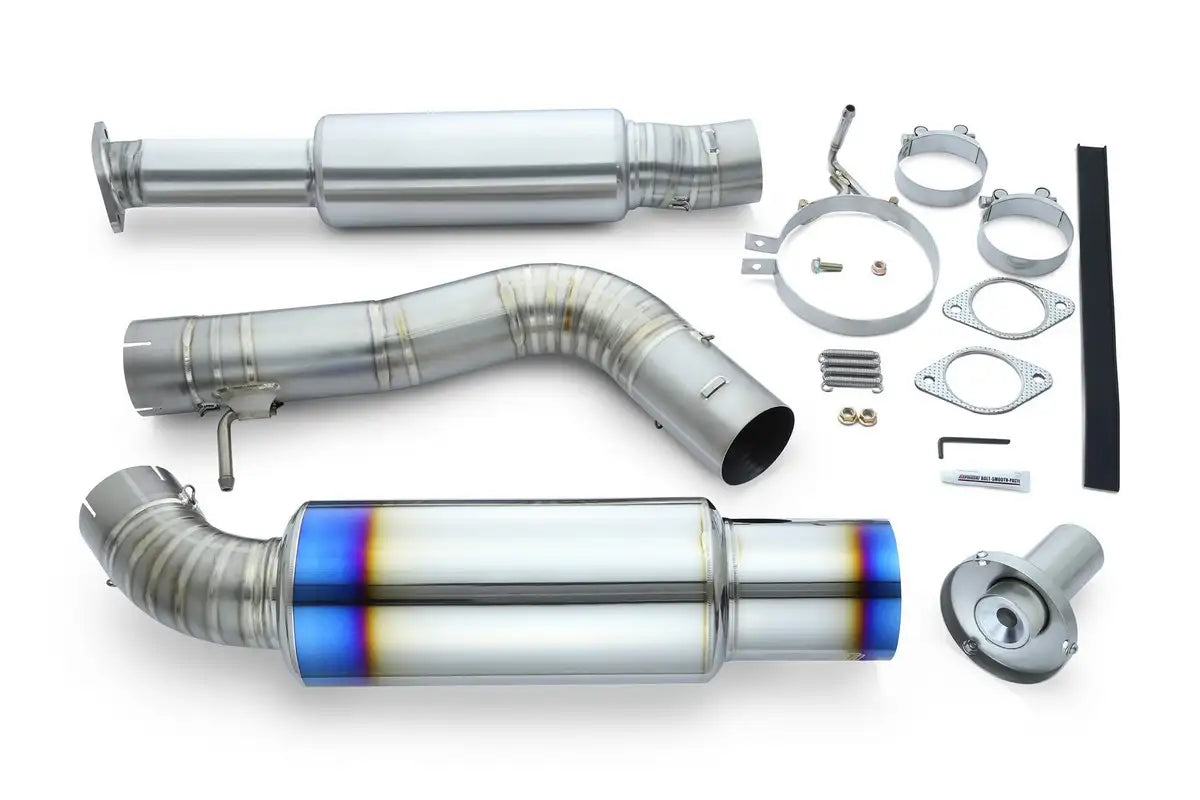

Complete Kit

This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts from becoming seized under heat.

Specifications

More Information
Availability New In Stock / Available
Exhaust Pipe Material Titanium
Exhaust Tip Diameter 4.5"
Exhaust Main Piping Diameter 3.5 inch
Exhaust Exit Style Single Driver Side Rear
Exhaust Series Expreme Ti TYPE-R
Exhaust Tip Finish Polished with Burnt Blue Ends
Shipping Weight (Dimensional) 64.580000
Clearance Sale No
Availability Available
Part Type Y-Pipe Back Exhaust
Make Nissan / Infiniti
Model Z 23+ RZ34
Engine VR30DDTT
Brand Tomei
Carb Legal No
Exhaust Diameter 3.5 inch
